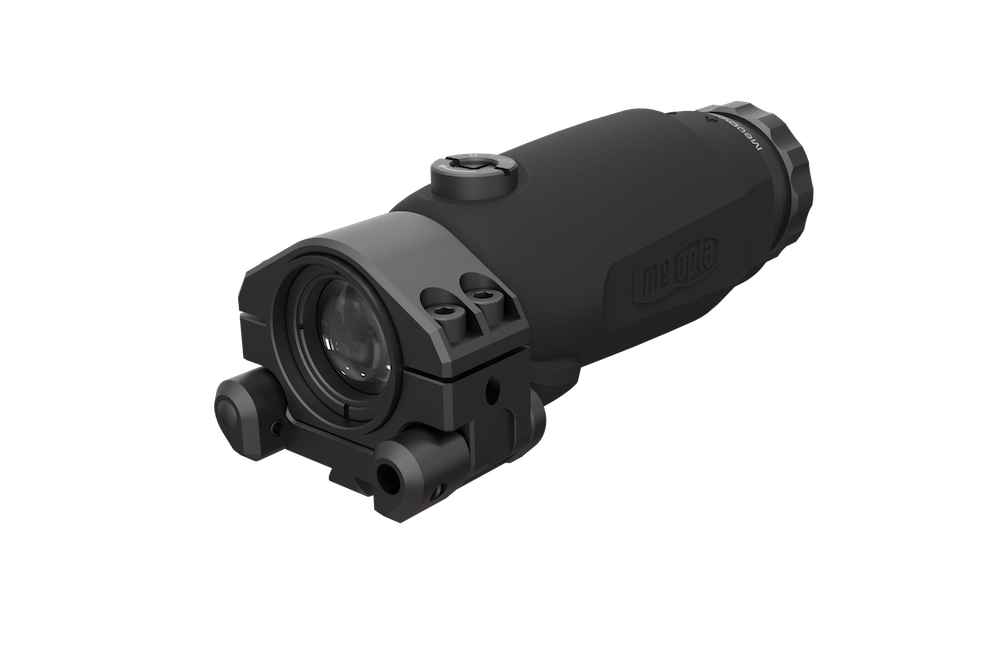

MeoBoost DF 5
The magnifying module with flip mount is ideal solution for weapon systems with red dot sights (AR, SMG, LMG). Allows precise aiming at medium distances and after unfolding also the possibility of direct shooting at short distances (CQB). It can be used also as a monocular spotting system with three times mgnification. Magnifier is equipped with rectifiers to set the aiming point to the central position.
Features:
- MeoBright
- MeoDrop
- Shockproof
- Waterproof
- Nitrogen purged
Specifications:
| Magnification | 5x |
| Objective Diameter (mm) | 20 |
| Exit Pupil Diameter (mm) | 6,4 |
| Eye Relief (mm | 65 |
| Field of View (°) | min. 6 |
| Dioptric Correction (D) | -4/+4 |
| Focus Range (m) | 20 to infinity |
| Measured Integral Transmission Daylight (%) | 87 |
| Measured Integral Transmission Twilight (%) | 83 |
| Vertical Range (MOA) | 80 |
| Horizontal Range (MOA) | 80 |
| Rectification step | continuous |
| Recoil Resistance (g) | 500 |
| Operational Temperature Range (°C) | -40/+60 |
| Storage Temperature Range (°C) | -45/+71 |
| Moisture Resistance [+23/+40°C] (%) | 80/98 |
| Water Resistance (m/hrs) | 2/2 |
| Dimensions LxHxW with eyepiece extended to max. possition (mm) | 130x46x49 |
| Weight with flip mount and weapon system base (g) | 386 |
