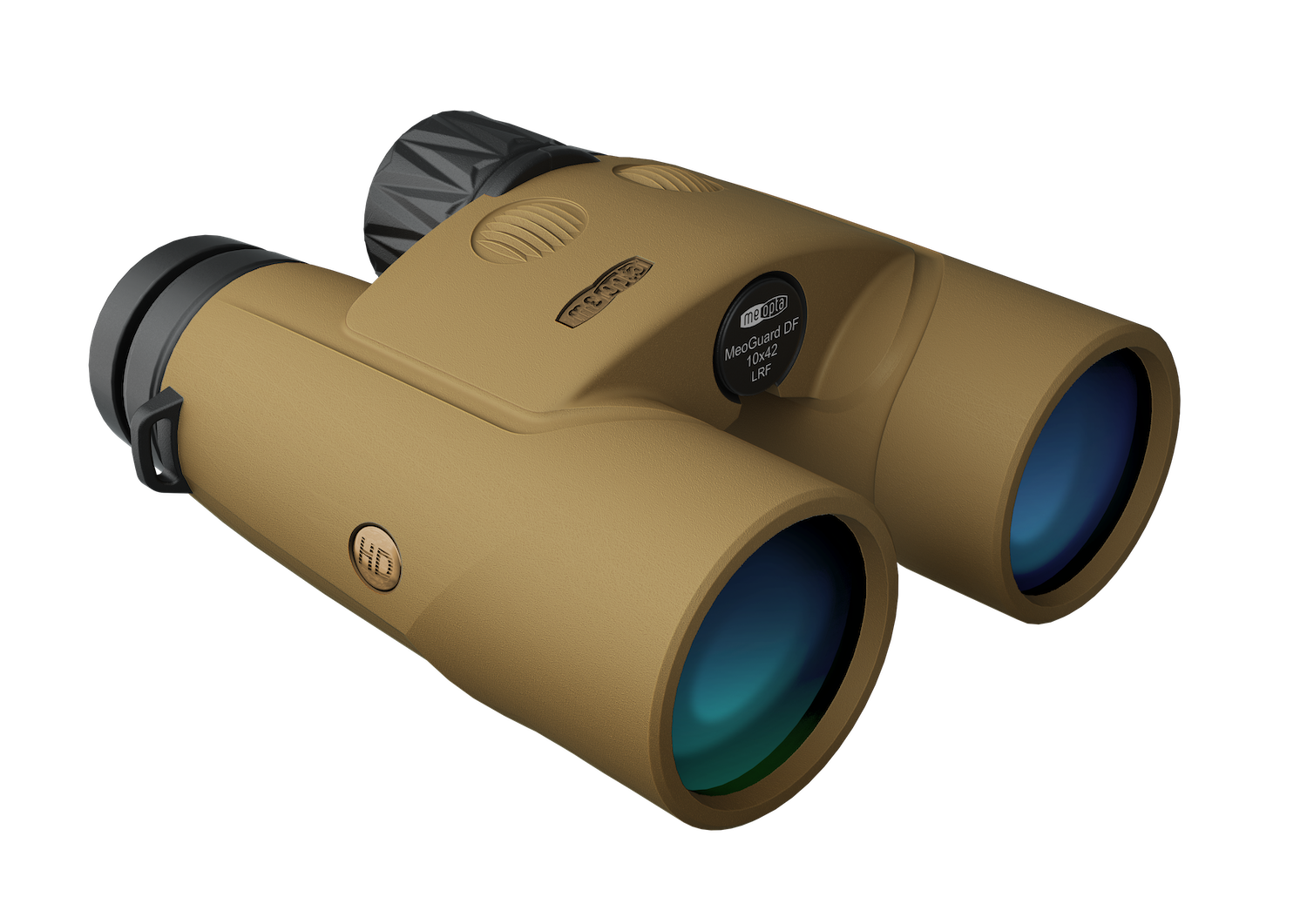

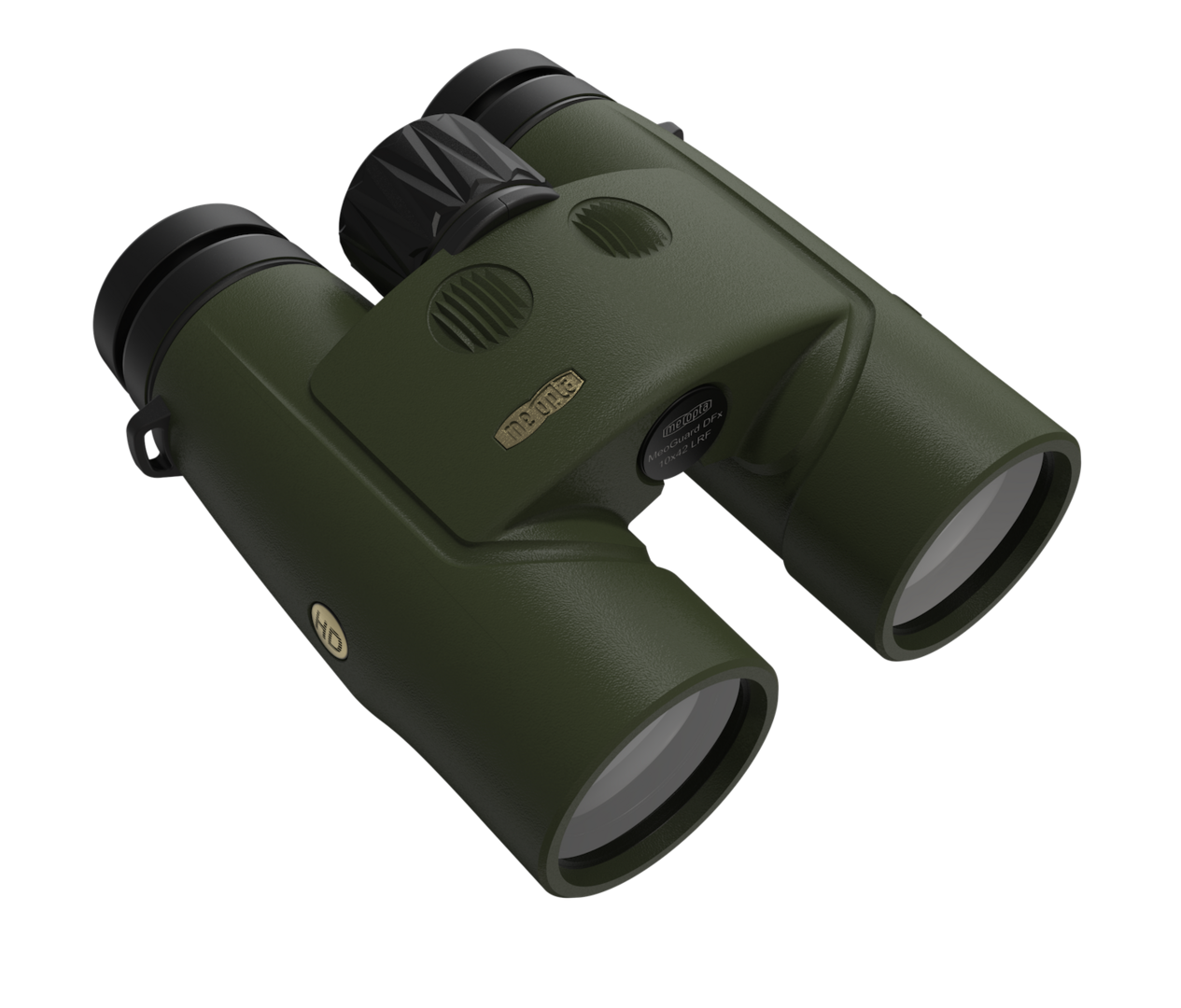

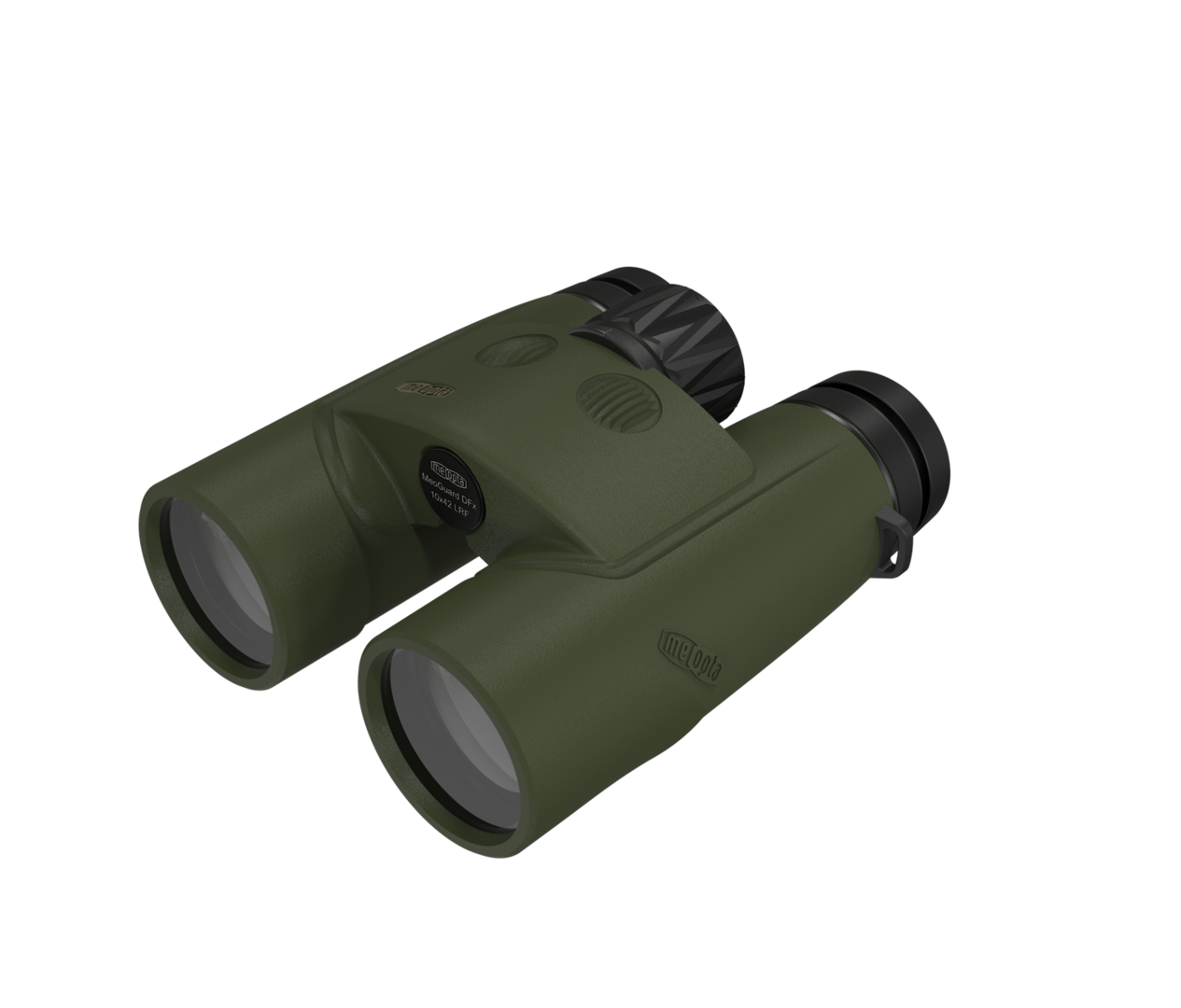

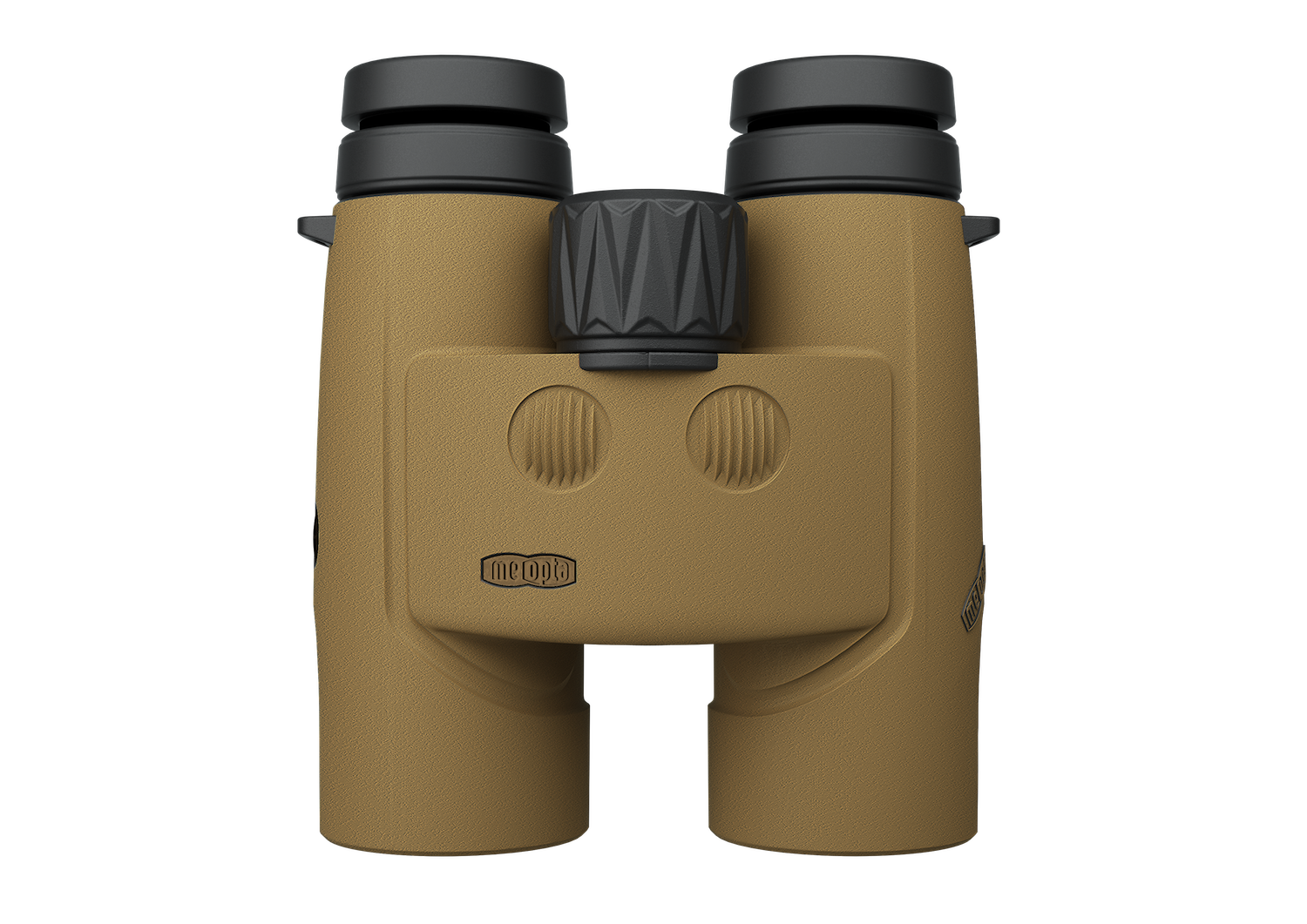

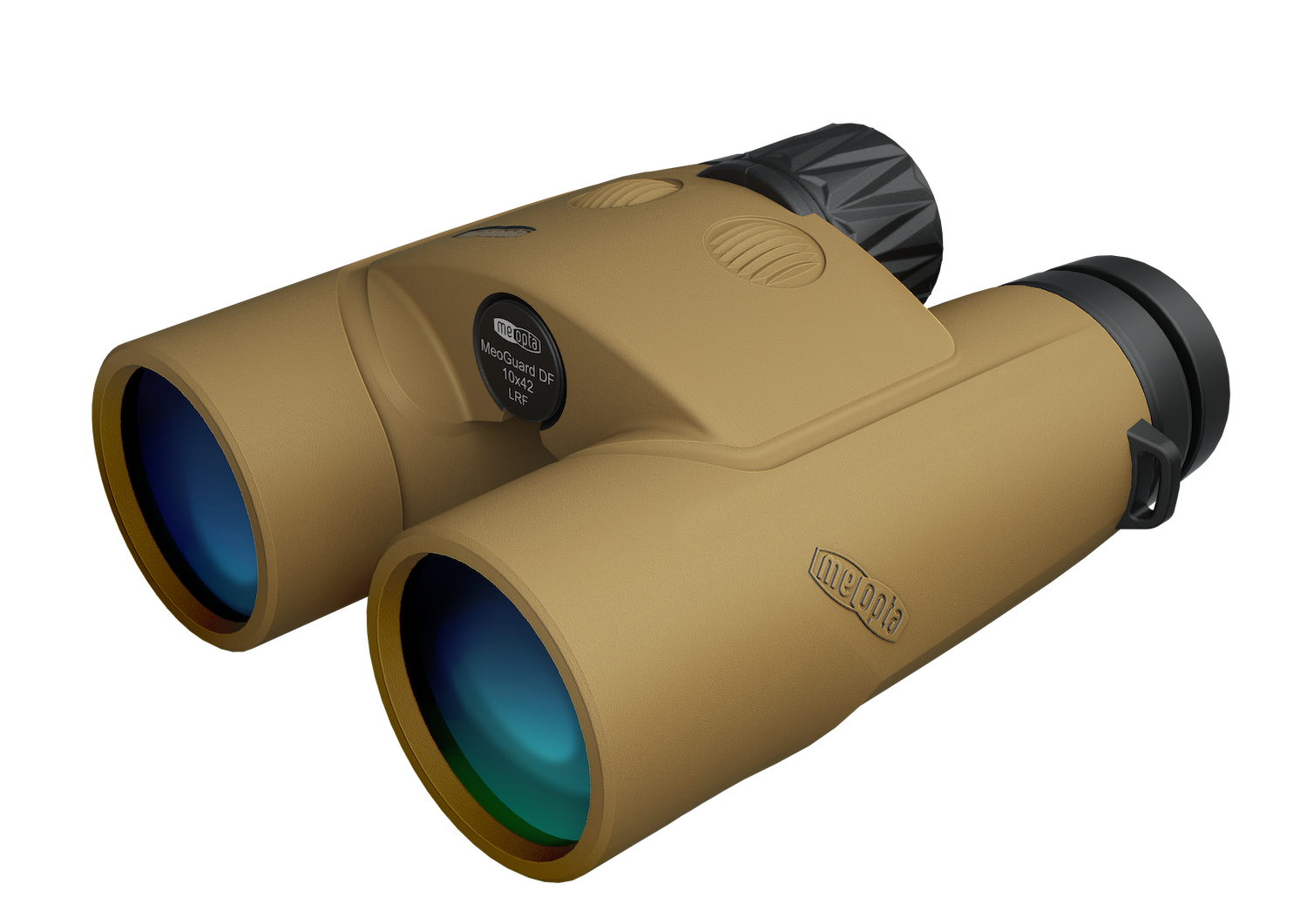

MeoGuard DFx 10x42 LRF
Download product sheet: MeoGuard DFx 10x42 LRF
MeoGuard DFx 10x42 LRF with the integrated laser rangefinder can be an appropriate aid for determining the exact distance of the target, whether in an open space or on rugged terrain. In addition to the rangefinder, the binocular combines outstanding optical properties that ensure a clear image. MeoGuard DFx 10x42 LRF is exceptionally resistant to moisture, dust, temperature fluctuation and shocks.
Features:
- MeoLux
- MeoDrop
- Waterproof
- Fogproof
- Equivalent horizontal range
- Elevation measurements
- Nitrogen purged
Specifications:
| Magnification | 10x |
| Objective Lens Diameter (mm) | 42 |
| Exit Pupil Diameter (mm) | 4.2 |
| Eye Relief (mm) | 17 |
| Reticle (Y/N) | N |
| Field of View (°) | 6.2 |
| Field of View (m/1000m) | 108 |
| Dioptric Correction (D) | -4/+3 |
| Minimum Focus Distance (m) | 4 |
| Measured Integral Transmission Daylight (%) | L: 85, R: 80 |
| Measured Integral Transmission Twilight (%) | L: 82, R: 82 |
| Twilight Factor | 20.5 |
| Interpupillary Distance (mm) | 54-76 |
| Recoil Resistance (g) | 100 |
| Power Supply (V) | 3 |
| Battery Lifetime* (no. of measurements) | min. 1200 |
| Automatic Shut Down (Y/N/sec.) | Y/10 |
| Laser Wavelength (nm) | 905 |
| Measurable Distance - reflective target (m) | 12-2380 |
| Measure Accuracy up to 1000 m (m) | +/- 1 |
| Measure Accuracy over 1000 m (m) | +/- 2 |
| Max Angle Reading (°) | +/- 65 |
| Measure Accuracy up to +/- 30° (°) | +/- 1 |
| Laser Class | 1 |
| Mark Brightness (cd/m2) | 2000 |
| Operational Temperature Range (°C) | -25 / +55 |
| Storage Temperature Range (°C) | -40 / +70 |
| Moisture Resistance [+40°C] (%) | 92 |
| Water Resistance (m/hrs) | 1/2 |
| Dimensions With Covers L x H x W (mm) | 154 x 84 x 154 |
| Weight with covers and batteries (g) | 992 |
* 1pc - 3 V, size CR 2 and ambient temperature +20°C
